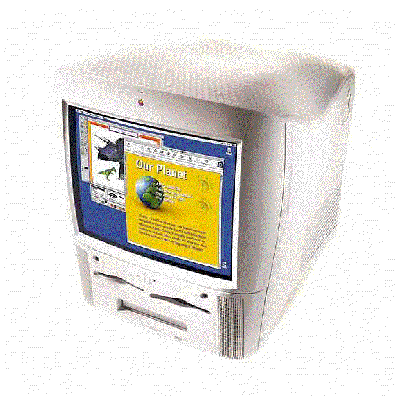

This is an early image of Apples new lowprice Mac called the Artemis! Isn't it beautiful! ***Stop Press*** This baby was disconntinued in favor of the iMac! Thought schools can still buy them i believe.	Copyright Apple 1998

Processor and memory

• 233- or 266-MHz PowerPC G3 processor
• 512K backside level 2 cache on processor module
• 117- or 133-MHz dedicated 64-bit backside bus
• Integrated floating-point unit and 64K on-chip level 1 cache (32K data and 32K instruction)
• 66-MHz system bus
• 32MB of SDRAM; 3 DIMM slots support up to 384MB
• 4MB of ROM
• 64-bit memory bus

Storage

• Internal 4GB IDE hard disk drive
• Internal 1.44MB Apple SuperDrive floppy disk drive
• Internal 24x-speed (maximum) CD-ROM drive

Interfaces

• Connectivity
  • Apple Desktop Bus (ADB) port
  • DB-15 connector for monitor
  • Internal/external SCSI bus (up to 5MBps)
  • Two high-speed DMA serial (RS-232/RS-422) ports
• Communications
  • Built-in 10BASE-T Ethernet connector (10Mbps)
  • Three 7-in.-PCI expansion slots compatible with PCI 2.1-compliant cards

Media capabilities

• Display
  • Multiple-scan, tilt-and-swivel color display: 15-in. (13.8-in. diagonal viewable image size)
  • 2MB of SGRAM video memory; supports up to 6MB
  • Supports thousands of colors at up to 1,024- by 768-pixel resolution (24-bit); supports millions of colors at up to 832- by 624-pixel resolution (32-bit)
  • Refresh rate of up to 85 Hz
• Sound
  • Mini jacks for 16-bit CD-quality stereo input/output; up to 44.1-kHz sampling rate
  • Two front headphone jacks
• Video
  • Built-in 64-bit graphics and multimedia accelerator chip
  • 24-bit video input; real-time video playthrough of up to 640 by 480 pixels with NTSC; 768 by 576 pixels with PAL and SECAM; up to 320- by 240-pixel capture at 30 frames per second with NTSC; maximum capture size of 640 by 480 pixels with NTSC; digital audio/video (DAV) connector*
  • 24-bit video output; supports RGB and optional NTSC*

System requirements

• Electrical requirements
  • Line voltage: 90 to 264 V AC, RMS single phase, automatically configured
  • Frequency: 50 to 60 Hz, single phase
  • Power: 300 W maximum; not including display
• ADB power requirements
  • Maximum current draw for all devices: 500 mA (maximum of three ADB devices recommended)
  • Mouse draws 10 mA
  • Keyboard draws 25 to 80 mA
• Environmental requirements
  • Operating temperature: 50° to 104° F (10° to 40° C)
  • Storage temperature: -40° to 116° F (-40° to 47° C)
  • Relative humidity: 5% to 95% noncondensing
  • Maximum altitude: 10,000 ft. (3,048 m)
• EPA Energy Star compliant

Size and weight

• Height: 19.9 in. (50.5 cm)
• Width: 16.1 in. (40.9 cm)
• Depth: 18.0 in. (45.7 cm)
• Weight: 59.5 lb. (26.8 kg)-will vary based on configuration
